1. Peb Ntau Lawm
2. Cov khoom piav qhia
UPGM 203 (GPO-3) Daim ntawv muaj lub zog zoo heev, nws tuaj yeem raug machined, xuas nrig ntaus, drilled, milled, sawn, sanded, sheared los yog routed rau ntau yam khoom. UPGM203 (GPO-3) CNC Machining Custom Slot Wedge wildly use as slot wedge in transformer, motor industry and coils.
3. Cov ntsiab lus ceev
|
Cov qauv |
IEC 893 / EN 60893 Qib: UPGM 203 NEMA L1: GPO-3 |
|
Loj |
Peb tuaj yeem tshuab qhov loj hauv 1250mmx2500mm (49in x 98in) |
|
Thickness |
{{0}}.6mm- 50mm(0.024in x1.96in) |
|
Xim |
Liab, Dawb, Grey, Xim av, Daj, Dub los yog Customized xim |
|
Muaj Peev Xwm Ntau Lawm |
Max 300tons ib hlis twg |
|
Qhov tshwm sim |
Ci nto los yog matt nto |
|
Ntim |
qhwv nrog PP zaj duab xis sab nraud thiab pallets nrog IPPC cov cim |

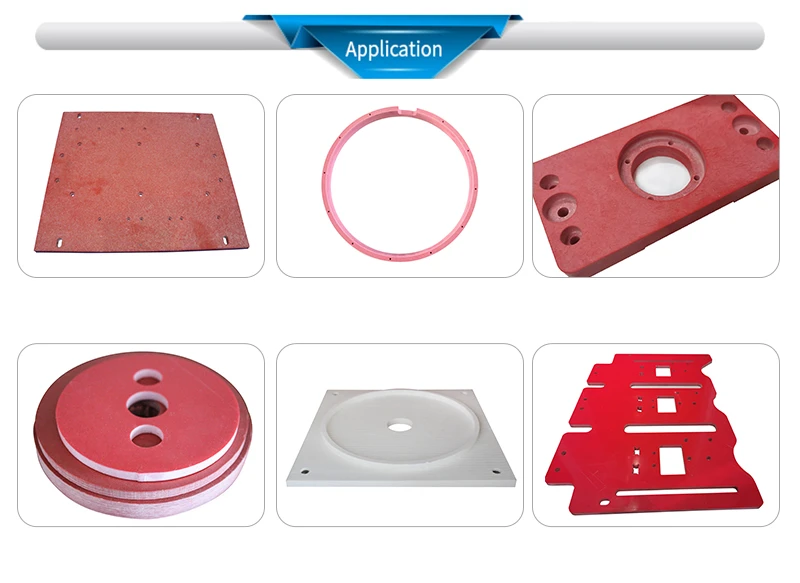

4. Daim ntawv thov
Kev siv dav dav:
|
Stator Qhov Ncauj |
Siv ua stator slot wedge hauv transformer, motor kev lag luam thiab coils.
|
Cov ntaub ntawv Technical
|
Tsis muaj. |
Cov khoom kuaj |
Kev ntsuas |
Kev xav tau |
Kev tshwm sim |
Kev Xeem |
|
|
1 |
Tensile zog |
MPa |
130 |
ASTM D 638-14 |
||
|
2 |
Tensile Modulus ntawm Elasticity |
MPa |
____ |
9.07x103 |
||
|
3 |
Flexural zog |
MPa |
—— |
230 |
ASTM D 790-17 |
|
|
4 |
Vertical Compression Strength |
MPa |
____ |
306 |
ASTM D 695-15 |
|
|
5 |
Vertical Hluav Taws Xob Lub zog (Rise sai hauv cov roj ib txwm) |
MV/m |
____ |
23.7 |
ASTM D 149-09 （2013） |
|
|
6 |
Vertical Flashover Voltage (Rise hauv huab cua) |
KV |
____ |
38.1 |
||
|
7 |
Parallel Puncture Voltage (Rise Rise nyob rau hauv ib txwm roj) |
KV |
____ |
81.0 |
||
|
8 |
Arc Resistance |
S |
—— |
182 |
ASTM D 495-14 |
|
|
9 |
Kev sib piv Index |
____ |
____ |
TSI 600 |
ASTM D 3638-12 |
|
|
10 |
Rwb thaiv tsev Resistance |
Ib txwm |
Ω |
—— |
5.7x1013 |
ASTM D 257-14 |
|
24H hauv dej |
1.7x1012 | |||||
|
11 |
Flammability |
Qib |
—— |
V-0 |
TSI 94:20065 |
|
|
12 |
Oxygen Index |
feem pua |
32.3 |
ASTM D 2863-10 |
||
|
13 |
Kev nqus dej |
feem pua |
—— |
0.27 |
ASTM D 570-98 |
|
|
14 |
Qhov ntom |
g/cm3 |
1.74 |
ASTM D 792-13 |
||
|
15 |
Coefficient ntawm Thermal Expansion (20 degree -100 degree) (Parallel) |
10-6/ degree |
—— |
23.5 |
ASTM D 696-16 |
|
|
16 |
Thermal conductivity (60 degree) |
W/m·K |
0.605 |
ASTM C 518-17 |
||
|
17 |
Kub Distortion Kub |
degree |
____ |
>240 |
ISO 75-1: 2013 |
|
|
18 |
Flammability |
Qib |
____ |
V-0 |
UL 94-2013 |
|
5. FAQ
1. Puas yog Zibo Haichen Composite tus tsim khoom ntawm UPGM203 (GPO-3) CNC Machining Custom Slot Wedge?
A: Yog, Zibo Haichen Composite yog cov chaw tsim khoom ntawm UPGM203 (GPO-3) CNC Machining Custom Slot Wedge.
2. Dab tsi yog qhov txawv ntawm SMC machining slot wedge thiab UPGM203 (GPO-3) CNC Machining Custom Slot Wedge?
A: SMC machining slot wedge yog ua tiav los ntawm SMC insualtion daim ntawv thiab UPGM203 (GPO-3) CNC Machining Custom Slot Wedge yog tsim los ntawm unsaturated Polyester Glass Mat.Mechanical thiab hluav taws xob cov khoom sib txawv ntawm ob hom ntawm qhov qhib.
3. Dab tsi yog qhov txawv ntawm FR4 CNC Machining thiab UPGM203 (GPO-3) daim ntawv CNC Machining?
A: Qhov sib txawv tseem ceeb yog price.FR4 CNC Machining nqi ntau dua li UPGM203 (GPO-3) daim ntawv CNC Machining.FR4 muaj qhov zoo ntawm lub zog tensile zoo, hnav tsis kam, kub tsis kam tshaj UPGM203 (GPO{{ 5}}) thiab SMC daim ntawv.
4. Vim li cas thiaj xaiv UPGM203 (GPO-3) CNC Machining Custom Slot Wedge?
A: UPGM203 (GPO-3) CNC Machining Custom Slot Wedge yog qhov dav heev, yog li nws yog qhov zoo tshaj plaws ntawm superalloy. Tsis tas li ntawd xwb, tab sis kuj nws lub neej ua haujlwm ntev. Yog li ntawd, rau cov neeg siv khoom, xaiv cov khoom zoo li no yog qhov tsim nyog rau kev siv, thiab yuav tsis muaj teeb meem hauv kev siv. Tau kawg, qhov tseem ceeb tshaj plaws yog tias nws tuaj yeem nqa tau yooj yim rau ntau yam kev lag luam, thiab pab txhawb kev tsim khoom. Qhov no yog qhov tseem ceeb tshaj plaws vim li cas thiaj li txais tos los ntawm tib neeg.
Thib ob, insulating composites muaj zog moldability thiab zoo oxidation kuj. Yog li ntawd, nws tuaj yeem siv dav hauv ntau yam kev lag luam, thiab ua lub luag haujlwm tseem ceeb hauv kev tsim khoom. Yog tias tsis muaj nws txoj kev koom tes, kev tsim khoom lag luam yuav raug cuam tshuam loj heev.
5. Vim li cas tus nqi sib txawv ntawm cov khoom sib txawv ntawm tib qhov profile?
A: Cov neeg muag khoom sib txawv muaj qhov sib txawv thiab qhov ntau thiab tsawg, thiab cov khoom hnyav yuav txawv, qhov no yuav cuam tshuam rau tus nqi profile. Tshwj xeeb, cov neeg muag khoom sib txawv siv cov khoom sib txawv, ua rau muaj qhov sib txawv loj hauv cov khoom siv tshuab.
6. Qhov ntsuas kub tsis kam yog dab tsi?
A: Qhov kub tsis kam yog F chav kawm ntawm 155 centigrade (degree)
7. Lub sijhawm khoom xa tuaj yog dab tsi?
A: Peb lub peev xwm yog 30T ib hlis thiab peb yuav muab sijhawm rau 15-25 hnub rau cov kev xav tau sib txawv.
6. Peb Daim Ntawv Pov Thawj
Peb tau dhau ISO9001 Quality Management Mystem, ISO14001 Environmental Management System, thiab peb UPGM203 thiab SMC Insulation Sheet tau ntawv pov thawj los ntawm RoHS thiab Reach certification.
7. Peb Exhibition txawv teb chaws
Peb nquag koom nrog kev lag luam txawv teb chaws, xws li CWIEME hauv Tebchaws Yelemees thiab Shanghai, AEC hauv Fabkis, Big5 hauv Dubai thiab Elecrama hauv Is Nrias teb kom coj peb cov neeg siv khoom zoo tshaj plaws rwb thaiv tsev khoom.
8. Ntim thiab xa khoom
Peb muab peb cov neeg siv khoom muaj zog kraft ntawv thiab txoj siv sia kom muaj kev nyab xeeb ntawm kev ntim khoom, kuj siv PP zaj duab xis qhwv sab nraud kom tsis txhob muaj kev puas tsuaj thiab ya raws hauv kev thauj mus los. Peb siv cov ntoo pallets nrog IPPC cov cim thiab daim ntawv pov thawj fumigation, uas ua tau raws li cov teb chaws tuaj txawv teb chaws.
